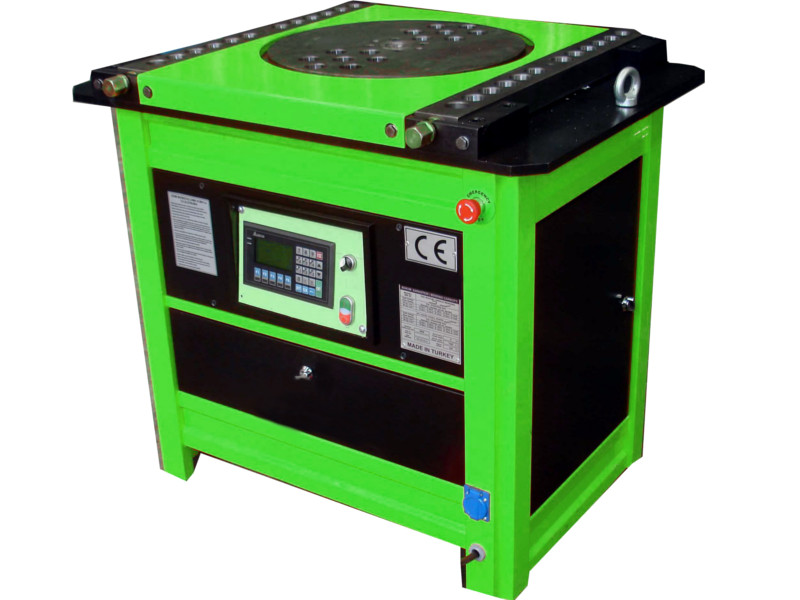

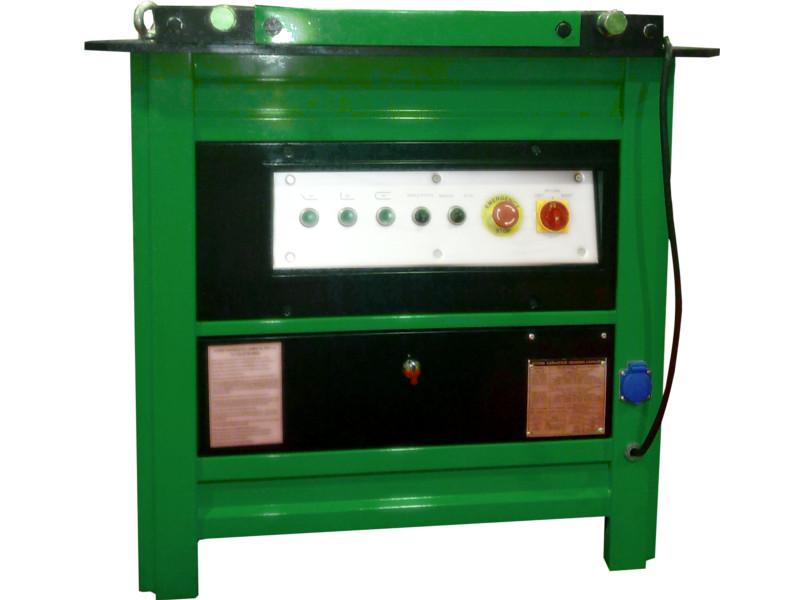

OSTIM B Series Rebar Bending Machines
TECHNICAL SPECIFICATIONS
| |
B26 |
B36 |
B42 |
B52 |
| Max. Bending Capacity 45 kg/mm2 |
26 mm |
36 mm |
42 mm |
52 mm |
| Max. Bending Capacity 65 kg/mm2 |
22 mm |
30 mm |
34 mm |
42 mm |
| Engine Power |
1,3 kW |
3,0 kW |
4,0 kW |
5,5 kW |
| Voltage |
380 V |
380 V |
380 V |
380 V |
| Weight |
170 kg |
360 kg |
435 kg |
700 kg |
| Dimensions |
65-75-70 cm |
90-80-85 cm |
95-85-87 cm |
120-100-100 cm |
| Speed |
9 rpm |
9,5 rpm |
8 rpm |
7,5 rpm |
| Power Transmission |
Mechanical |
Mechanical |
Mechanical |
Mechanical |
| Frequency |
50 hz |
50 hz |
50 hz |
50 hz |
