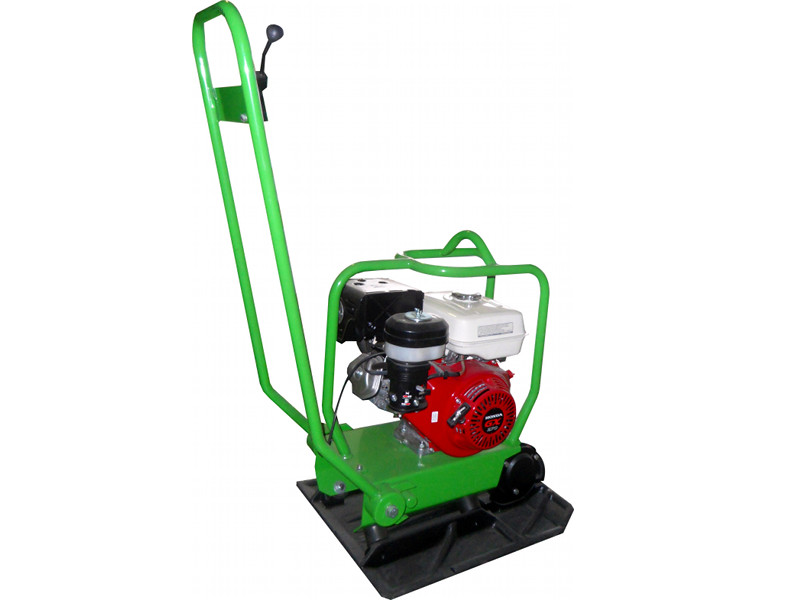

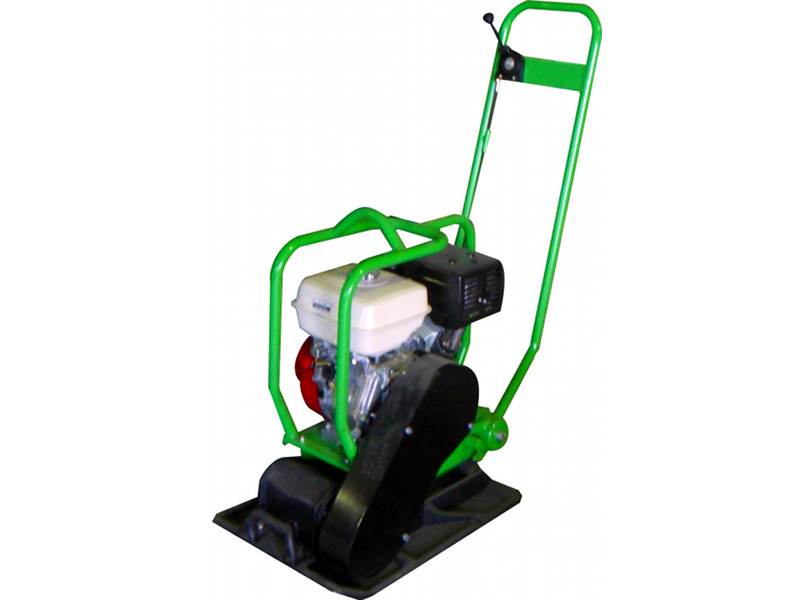

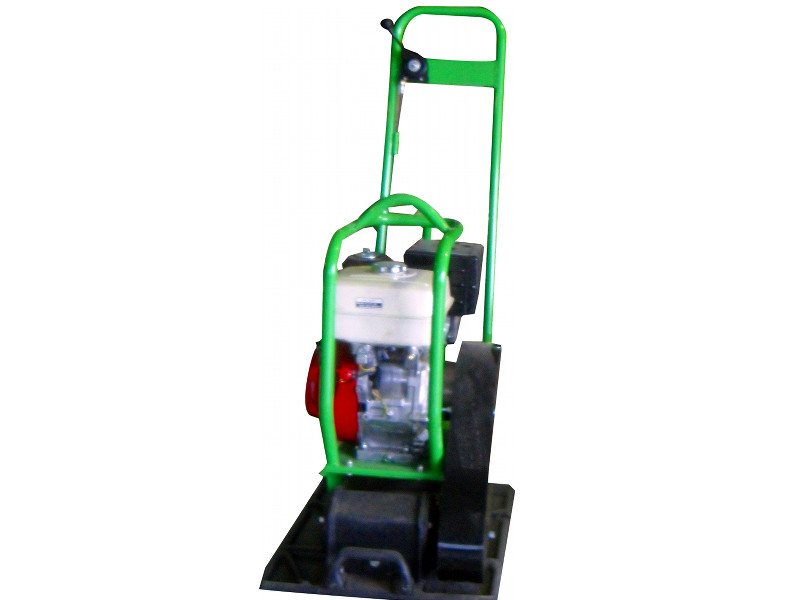

OSTIM P50 PLATE COMPACTORS
Plate: Sphero casting compaction plate and vibration unit manufactured as mono block and under warranty against breaking for 3 years.
Centrifugial clutch: Under low temperature whather conditions, our unique system makes first start easier and preserves engine against shocks and also machine doesn’t make vibration while at idle.Due to the this feature, our machines have longer life span.
TECHNICAL SPECIFICATIONS
| Plate Dimensions |
50 X 60 |
| Direction |
Forward |
| Compaction Capacity |
660 m2 / h |
| Climb Rate |
30 % |
| Vibration Power |
26 kN |
| Fibration Frequency |
78 hz |
| Weight |
120 - 145 kg |
| Start |
Rope |
| ENGINE ALTERNATIVES |
|
| Gasoline |
Honda GX 270 9.0 Hp |

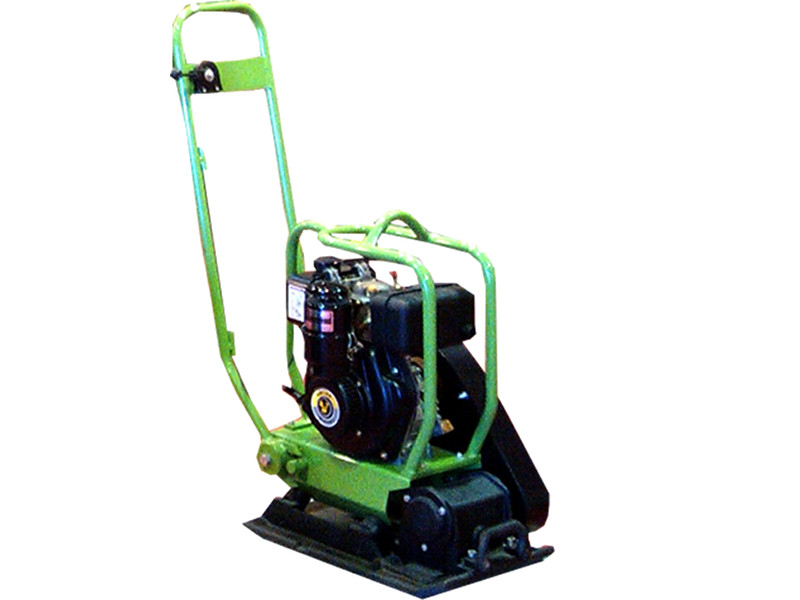

| Diesel |
Lombardini 15LD350 7.5 Hp |
