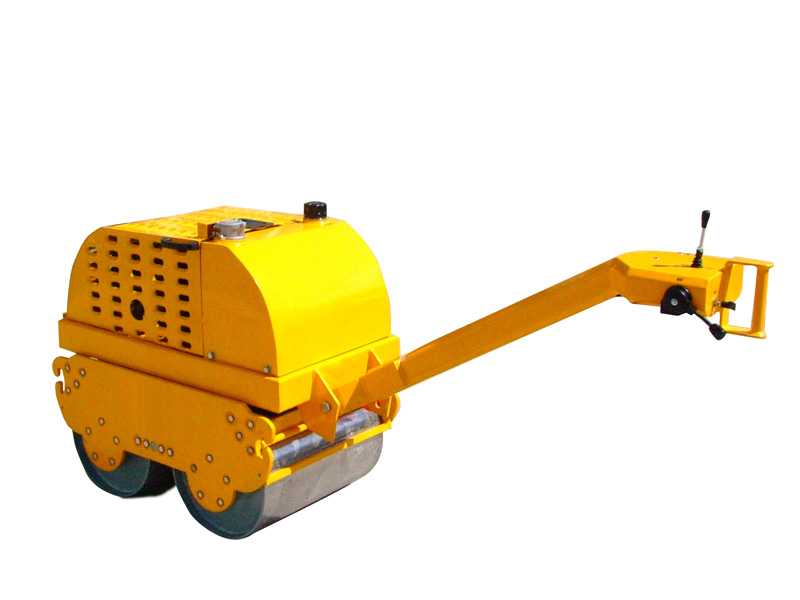

OSTIM MDR 600 Walk Behind Vibratory Rollers



Due to its environment friendly engines, compatible with EU emission rules, OSTIM MDR Series Walk Behind Vibratory Rollers works at maximum energy. Best for works such as road repair, soil compaction, pipe line compaction, ground straithening, walkway and parking lots construction, pavement compaction, and etc.

All OSTIM MDR Series Vibratory Rollers compatible with CE obligations and also have some unique features.


Centrifugial clutch: Under low temperature whather conditions, our unique system makes first start easier and preserves engine against shocks and also machine doesn’t make vibration while at idle.Due to the this feature, our machines have longer life span.



Gear Torque Driving Mechanism: In contrast with traditional driving systems using chains and belts our machines has equipped gears. This unique system makes our machines more powerful,more durable and also thinner. With only 7 cm pock, compacting narrow places is no more a problem.



You can find product's user and spare parts manual at documents section



You can find product's video on videos section



All OSTIM MDR 600 Rollers are under spare parts warranty for 1 year


TECHNICAL CHARACTERISTICS



Weight 650 kg
Drum Diameter 40 cm
Drum Width 60 cm
Water Tank 30 lt
Hydraulic Oil Tank 30 lt
Vibration Frequency 60 hz
Vibration Power 20 kN
Static Lineer Power 5,5 kg/cm
Dynamic Lineer Power 14,1 kg/cm
Compaction Area 2400 m2/h
Speed 0-4 km/h
Climb Rate 40 %
Drive Hydrostatic
Vibration Hydrostatic
Start Rope / Electric 12V 60 Ampere
ENGINE ALTERNATIVES
Gasoline Honda GX 270 9.0 Hp
Diesel Lombardini 15LD315 6.8 Hp
